– 10″ transparent housing for easy monitoring of filter condition.
– Genuine Aquafilter FPCS5 with 5-micron filtration for superior water purity.
– Multi-fibre zones for efficient graded filtration and extended lifespan.

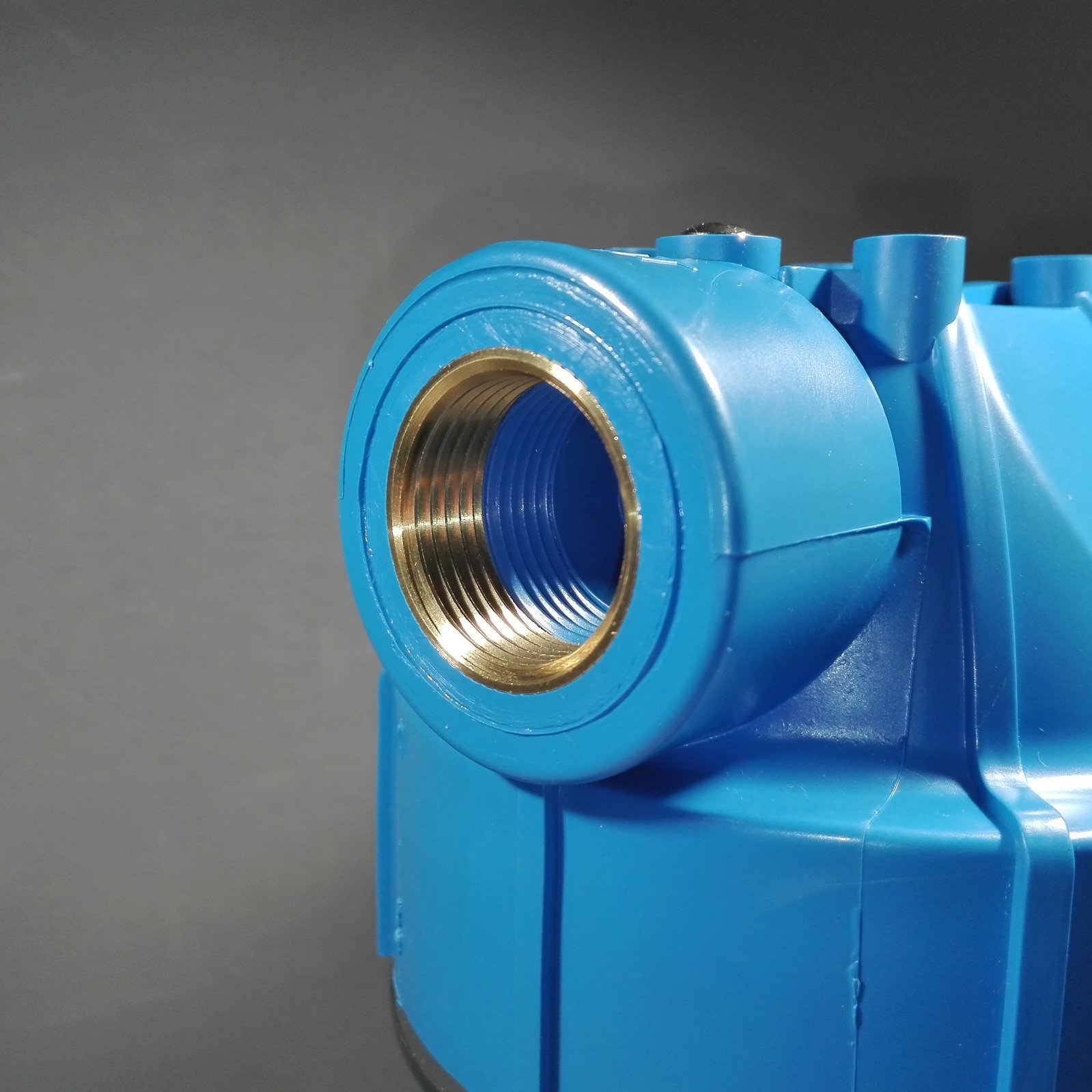

– Durable 3/4″ BSP brass inlet and outlet for secure connections.
– Dual O-rings provide maximum leak-proof performance for peace of mind.
The AQUAFILTER FHPR34-B1-AQ H10B Series is a two-part 10″ water filter housing designed for cold water applications in both domestic and commercial settings. It features a transparent sump for monitoring cartridge contamination, a pressure relief valve for easy cartridge replacement, and a leak-proof design with two O-rings. This housing is compatible with a wide range of 2 ½” x 10” type cartridges and can be mounted individually or in a series. It is constructed with high-quality materials and is WRAS approved, NSF certified for structural integrity, and complies with FDA CFR Title 21.

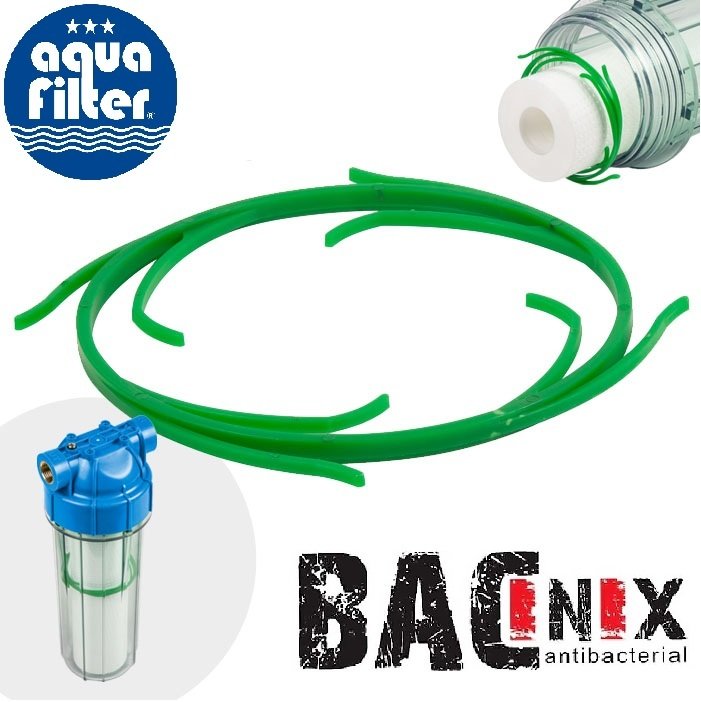

The product kit includes a two-part water filter housing with a transparent sump, a plastic mounting bracket and screws, a filter housing wrench, an antibacterial filter cartridge centralizing ring (BACINIX™ technology), and polypropylene sediment filters (Aquafilter FCPS5 – 5 micron). The specifications include a maximum operating pressure of 6 bar (90 psi), a minimum working temperature of 2°C, and a maximum working temperature of 45°C. The dimensions without the bracket are 315 x 120mm, and with the bracket, they are 355 x 120 x 140mm.
• Two-part water filter housing for easy maintenance
• Transparent sump for monitoring filter condition
• Pressure relief valve for safe cartridge replacement
• Compatible with a variety of 2 ½” x 10” cartridges
• Made in the EU with high-quality components
